Home/Products/Harmonai LD-8AC WiFi Smart Power Sequencer | 8 Controlled Outputs, Remote APP Control

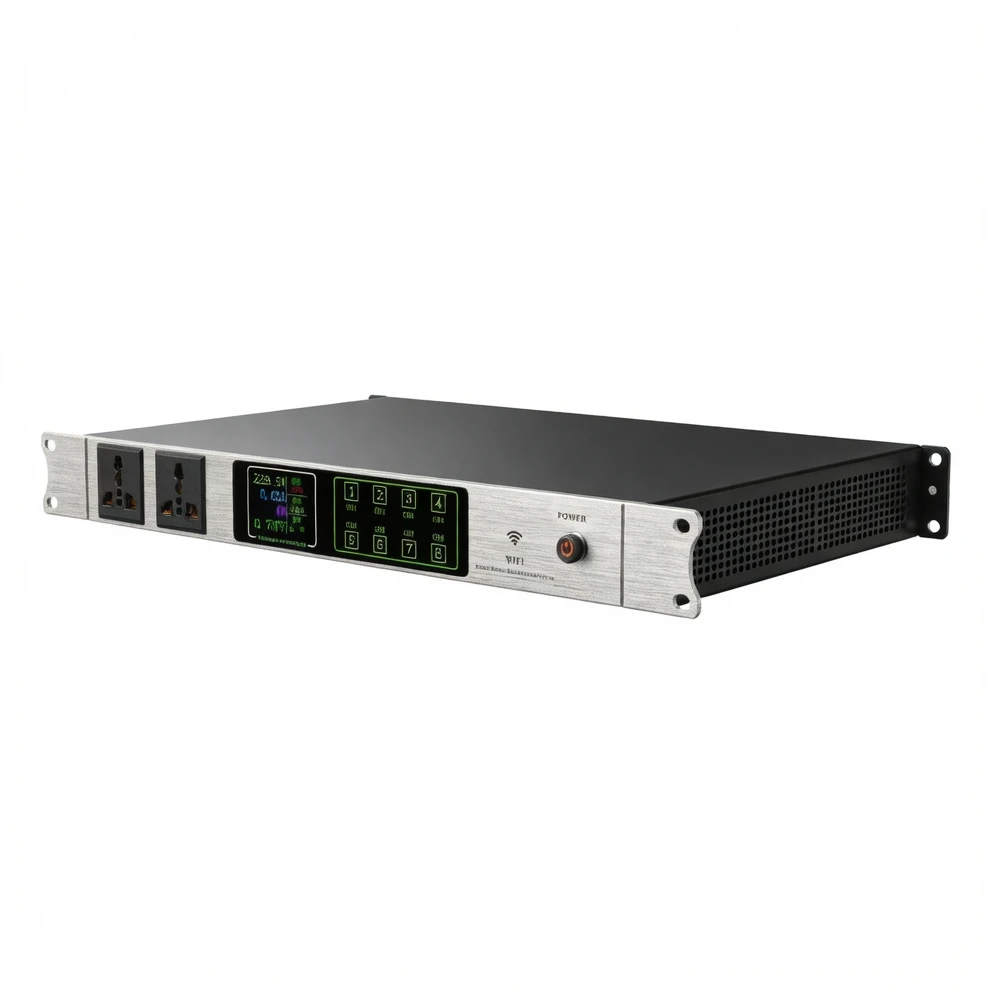

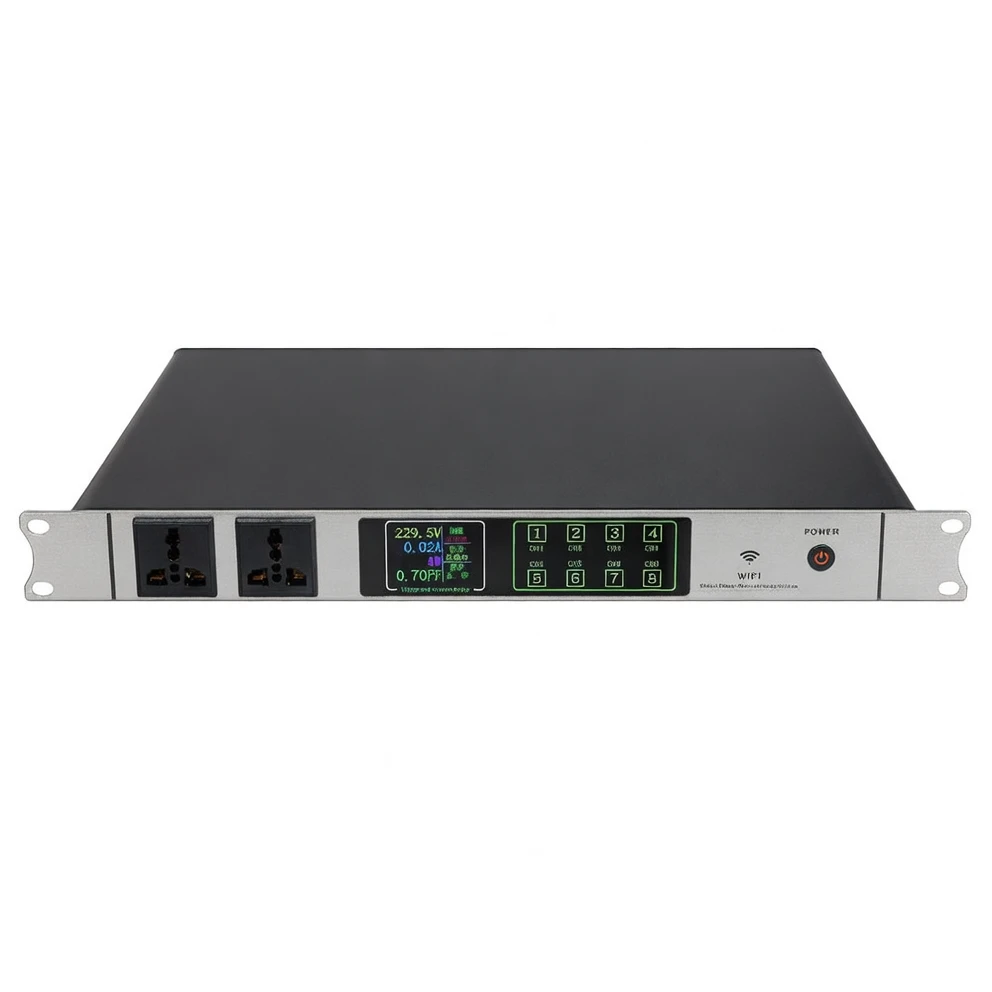

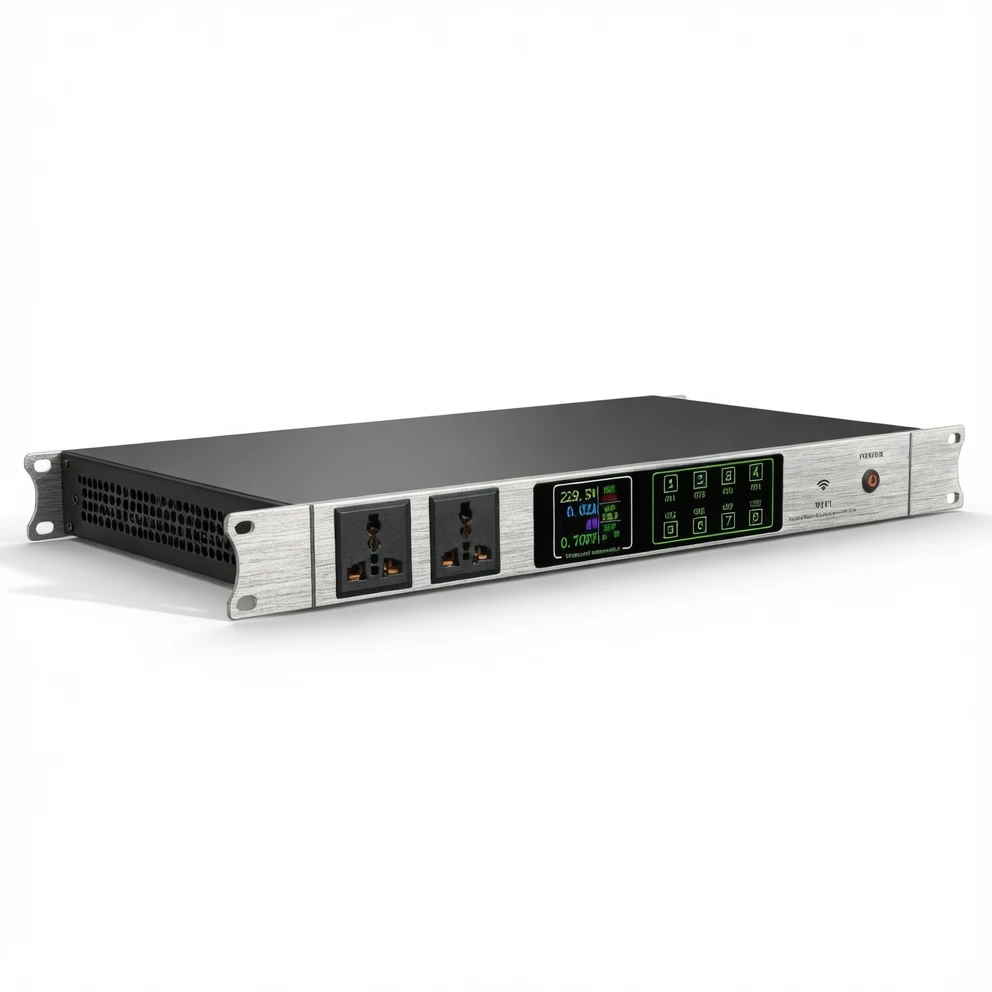

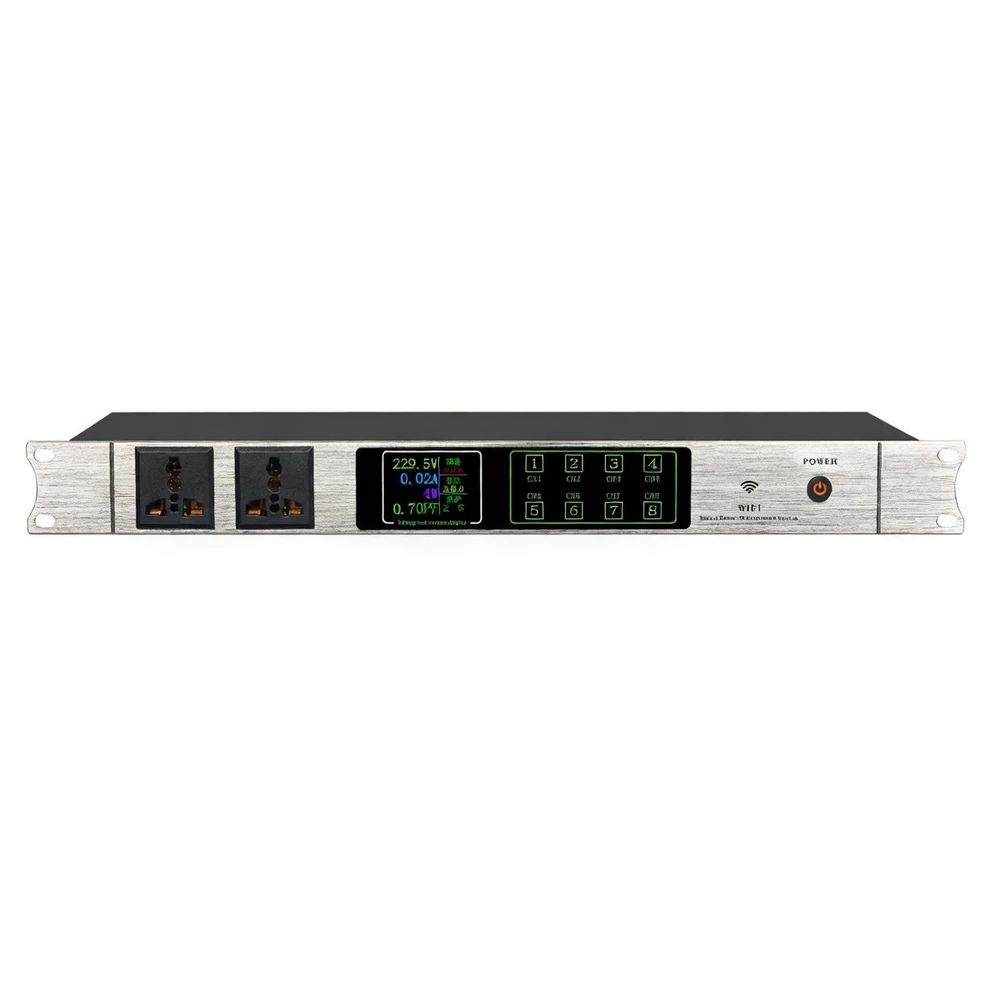

Harmonai LD-8AC WiFi Smart Power Sequencer image 1

Harmonai LD-8AC WiFi Smart Power Sequencer | 8 Controlled Outputs, Remote APP Control

The Harmonai LD-8AC is a WiFi-enabled smart power sequencer with 8 controllable output channels and remote smartphone APP control. It features real-time power metering (voltage, cu...

Contact for price
Model
LD-8AC
Category
Power Sequencers
Images
4 images
Status
ready
Get Quote
Supplier

奥华科技电源时序器

Generated onJune 10, 2026
Harmonai LD-8AC WiFi Smart Power Sequencer image 1

Product Brief

Harmonai LD-8AC WiFi Smart Power Sequencer | 8 Controlled Outputs, Remote APP Control

Overview

The Harmonai LD-8AC is a WiFi-enabled smart power sequencer with 8 controllable output channels and remote smartphone APP control. It features real-time power metering (voltage, cu...

Price
Contact for price
Model
LD-8AC
Category
Power Sequencers

Specifications

Specifications

ParameterValue
Product NameLD-8AC WiFi Smart Power Sequencer
ModelLD-8AC
CategoryPower Sequencer
Input VoltageAC90–265V, 50–60Hz (single-phase 3-wire)
Wiring Method3-wire system (neutral, live, ground)
Number of Channels8 relay-controlled outputs + 2 pass-through universal sockets
Max. Current per Channel16A
Max. Power per Channel2000W
Total Power Capacity6200W
Socket SpecificationFlame-retardant ABS universal sockets (phosphor bronze contacts, rated for up to 16A)
Switching Interval per Channel1.2 seconds
Relay Contact Rating40A at 240VAC
Overvoltage ProtectionAuto-disconnect above 260V (manual or APP reset supported)
Overcurrent ProtectionAuto-disconnect above 35A (manual or APP reset supported)
Remote ControlWiFi smart control with smartphone APP remote management
Network SetupOne-touch network pairing (APP auto-connects within same WiFi LAN)
WiFi Transmission Range30m (line-of-sight, 2.4GHz band)
Power-Loss MemorySettings automatically saved during unexpected power loss
Custom FunctionCyclic on/off scheduling (server-controlled)
Front Panel MaterialBlack aluminum
Built-in FeaturePower meter (real-time display and upload of voltage, current, power, and power factor)
HarmonAIPage 1 / 1
