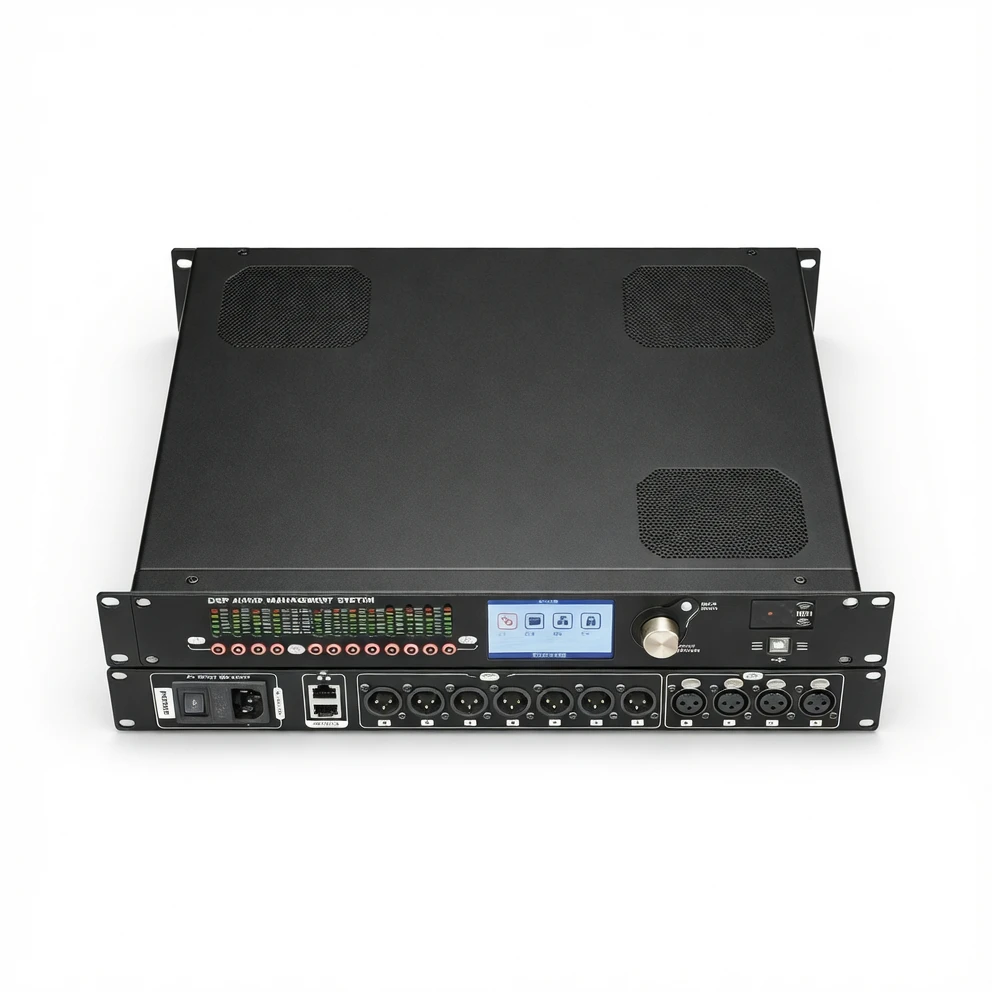

Harmonai DAP48 4-in/8-out Digital Audio Processor image 1

Harmonai DAP48 4-in/8-out Digital Audio Processor — 31-band GEQ + 10-band PEQ, Precision Audio Routing

The Harmonai DAP48 is a professional 4-in/8-out digital audio processor featuring 31-band GEQ and 10-band PEQ per input channel, independent 0–1000 ms delay control, 10-band output...

$303.40

Model: DAP48
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai DAP48 4-in/8-out Digital Audio Processor — 31-band GEQ + 10-band PEQ, Precision Audio Routing

Overview

The Harmonai DAP48 is a professional 4-in/8-out digital audio processor featuring 31-band GEQ and 10-band PEQ per input channel, independent 0–1000 ms delay control, 10-band output...

Price: $303.40
Model: DAP48
Category: Stage Accessories

Specifications

Parameter	Value
Input Channels	4
Output Channels	8
Input Equalization	31-band GEQ + 10-band PEQ per channel
PEQ Center Frequency	20 Hz – 20 kHz
PEQ Gain	±20 dB, 0.1 dB step size
PEQ Q Factor	0.404 – 28.8
Input Delay	0 – 1000 ms (21 μs step size for <10 ms; 1 ms step size for >10 ms)
Mute Control	Independent mute per channel
Output Channel Selection	Select any single input channel or combination of input channels per output
Gain Range	−36 dB to +12 dB, 0.1 dB step size
Output Delay	0 – 1000 ms
Output Equalization	10-band EQ per output channel, with selectable PEQ / low-shelf / high-shelf modes
Crossover Filters	Low-pass (LPF) / high-pass (HPF)
Filter Types	Linkwitz-Riley / Bessel / Butterworth
Crossover Frequency	20 Hz – 20 kHz
Attenuation Slope	12 dB/oct, 18 dB/oct, 24 dB/oct, 48 dB/oct

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

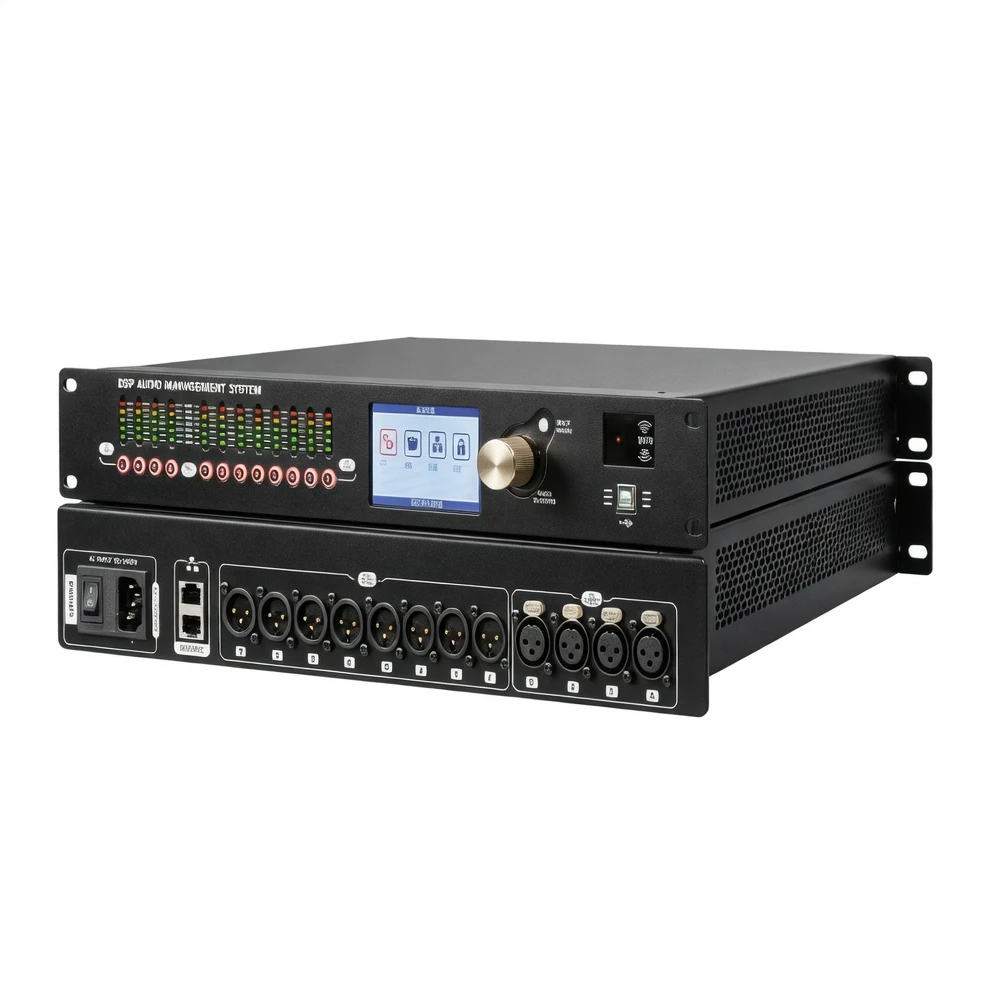

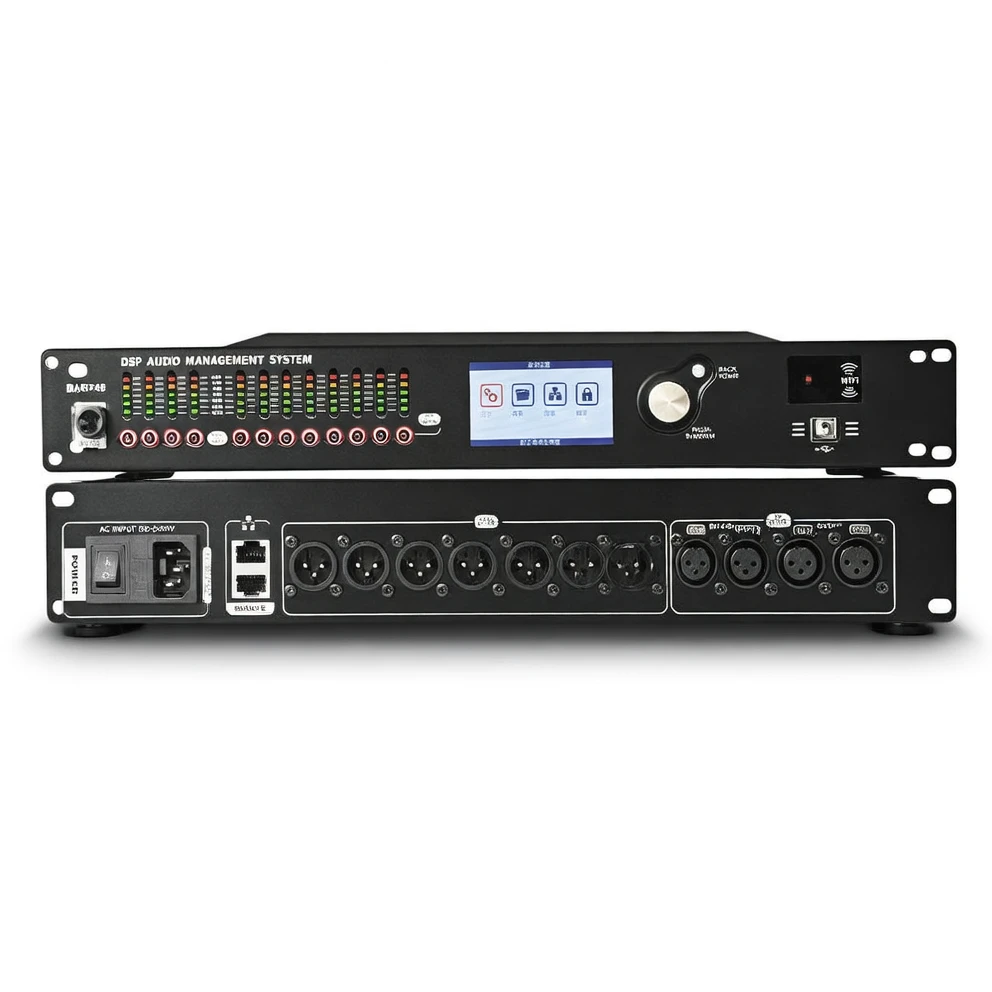

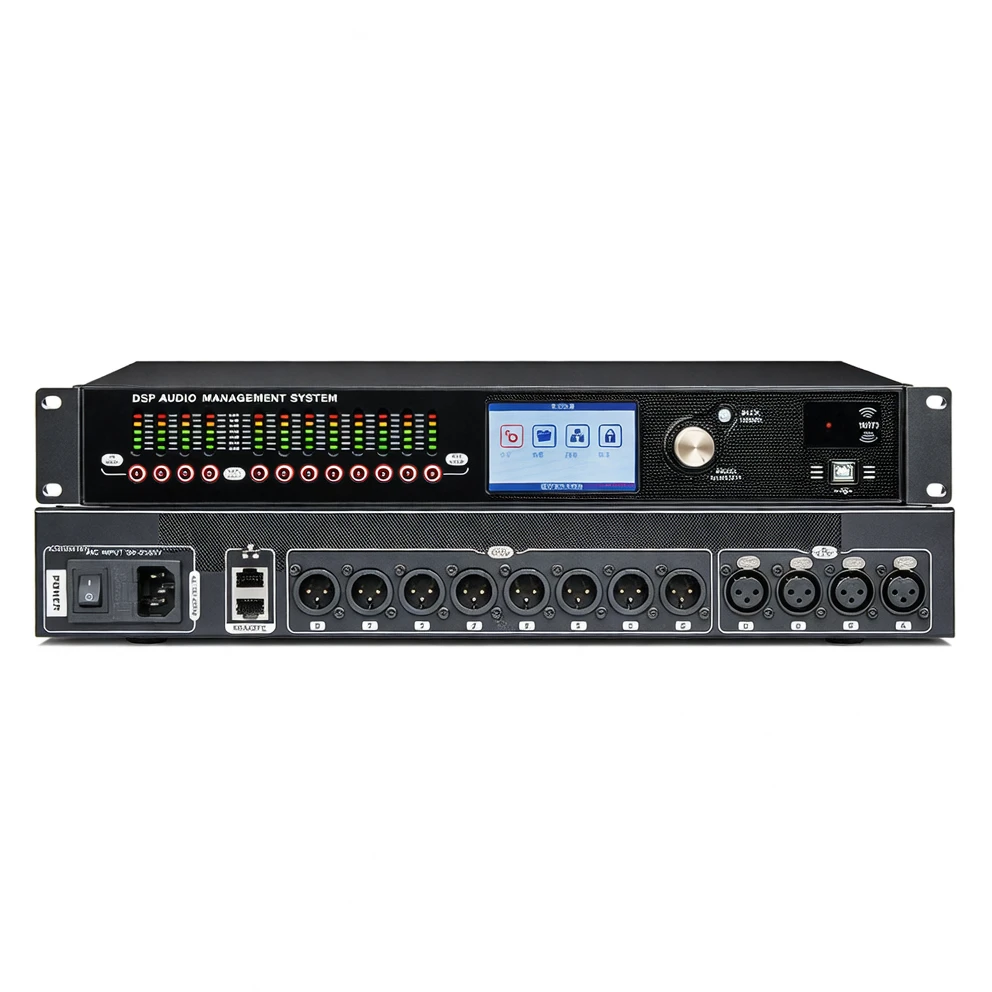

Harmonai DAP48 4-in/8-out digital audio processor product image

Product Overview

The Harmonai DAP48 is a powerful 4-in/8-out digital audio processor designed for professional audio systems. Each input channel features 31-band graphic equalization (GEQ) and 10-band parametric equalization (PEQ), with center frequencies spanning the full 20 Hz–20 kHz range, gain adjustment from ±20 dB in 0.1 dB steps, and Q values from 0.404 to 28.8—enabling extremely precise tonal shaping. Each input channel includes independent delay control ranging from 0–1000 ms: resolution is 21 μs for delays under 10 ms, and 1 ms for delays above 10 ms—achieving microsecond-level precision. Each output channel can be individually routed to any single input channel or combination of input channels, offering highly flexible signal routing. Output processing includes 10-band equalization (with selectable PEQ, low-shelf, or high-shelf modes) and professional crossover filters (LPF/HPF), supporting Linkwitz-Riley, Bessel, and Butterworth filter types with selectable attenuation slopes of 12, 18, 24, or 48 dB/octave—making it an ideal digital audio processing solution for professional sound engineering, live sound reinforcement, and large-scale venues.

Input Channels

Output Channels

Input Equalization

31-band GEQ + 10-band PEQ per channel

PEQ Center Frequency

20 Hz – 20 kHz

PEQ Gain

±20 dB, 0.1 dB step size

PEQ Q Factor

0.404 – 28.8

Input Delay

0 – 1000 ms (21 μs step size for <10 ms; 1 ms step size for >10 ms)

Mute Control

Independent mute per channel

Output Channel Selection

Select any single input channel or combination of input channels per output

Gain Range

−36 dB to +12 dB, 0.1 dB step size

Output Delay

0 – 1000 ms

Output Equalization

10-band EQ per output channel, with selectable PEQ / low-shelf / high-shelf modes

Crossover Filters

Low-pass (LPF) / high-pass (HPF)

Filter Types

Linkwitz-Riley / Bessel / Butterworth

Crossover Frequency

20 Hz – 20 kHz

Attenuation Slope

12 dB/oct, 18 dB/oct, 24 dB/oct, 48 dB/oct

Typical Applications

The DAP48 is ideal for professional sound systems, live sound reinforcement, large venues, theaters, conference centers, and any environment requiring precise audio signal processing. Its 4-in/8-out configuration supports multi-zone and multi-speaker system signal distribution. The 31-band GEQ + 10-band PEQ on each input enables sound engineers to precisely correct room acoustics and loudspeaker frequency response anomalies. Microsecond-accurate delay control ensures phase coherence across multi-loudspeaker arrays. The 10-band output EQ combined with professional crossover filters allows precise matching to full-range, subwoofer, and high-frequency loudspeakers. With three selectable filter types (Linkwitz-Riley, Bessel, Butterworth) and four attenuation slope options, the DAP48 delivers optimal crossover performance for diverse applications.

For more information about the Harmonai DAP48 digital audio processor—including technical specifications and application recommendations—contact us for expert custom audio system consultation.
