Harmonai DAP36 3-in/6-out Digital Audio Processor

The Harmonai DAP36 is a professional 3-in/6-out digital audio processor featuring 31-band GEQ and 10-band PEQ per input channel, independent delay control (0–1000 ms), and precisio...

$259.43

Model: DAP36
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai DAP36 3-in/6-out Digital Audio Processor

Overview

The Harmonai DAP36 is a professional 3-in/6-out digital audio processor featuring 31-band GEQ and 10-band PEQ per input channel, independent delay control (0–1000 ms), and precisio...

Price: $259.43
Model: DAP36
Category: Stage Accessories

Specifications

Parameter	Value
Input Channels	3 channels
Output Channels	6 channels
Channel Mute Control	Individual mute control per channel
Input Delay Control	Independent delay control per input channel
Delay Range	0–1000 ms (21 μs step for delays <10 ms; 1 ms step for delays ≥10 ms)
Input Equalization	31-band GEQ and 10-band PEQ per input channel
PEQ Center Frequency	20 Hz–20 kHz, 1 Hz step
PEQ Gain Range	±20 dB, 0.1 dB step
PEQ Q Factor Range	0.404–28.8
Gain Range	−36 dB to +12 dB, 0.1 dB step
Output Channel Selection	Each output channel can be assigned to a single input channel or any combination of input channels
Crossover Equalization	10-band equalization per output channel
Equalization Type	Selectable PEQ / low-shelf (LO-shelf) / high-shelf (Hi-shelf)
Filter Types	Linkwitz-Riley / Bessel / Butterworth
High-Pass/Low-Pass Filters	HPF/LPF selectable
Crossover Point Range	20 Hz–20 kHz
Crossover Attenuation Slopes	Selectable 12 dB/oct, 18 dB/oct, 24 dB/oct, or 48 dB/oct

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

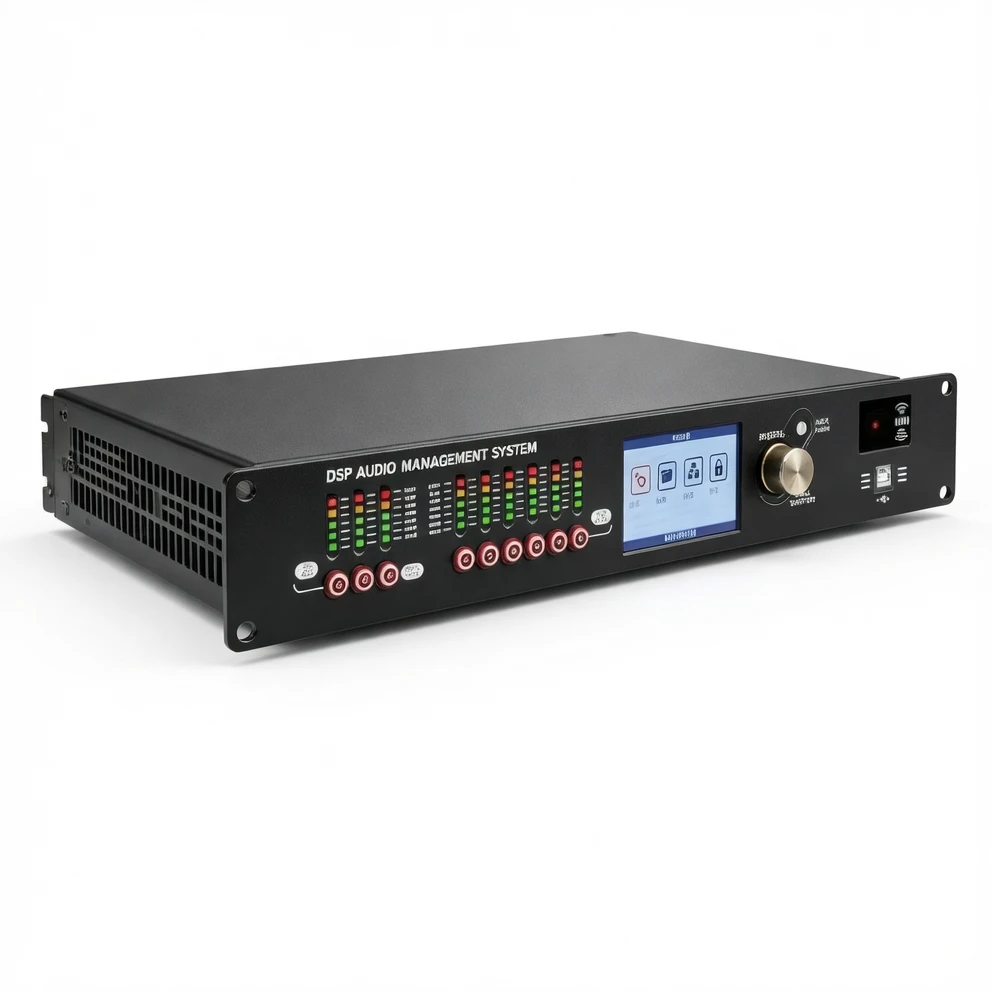

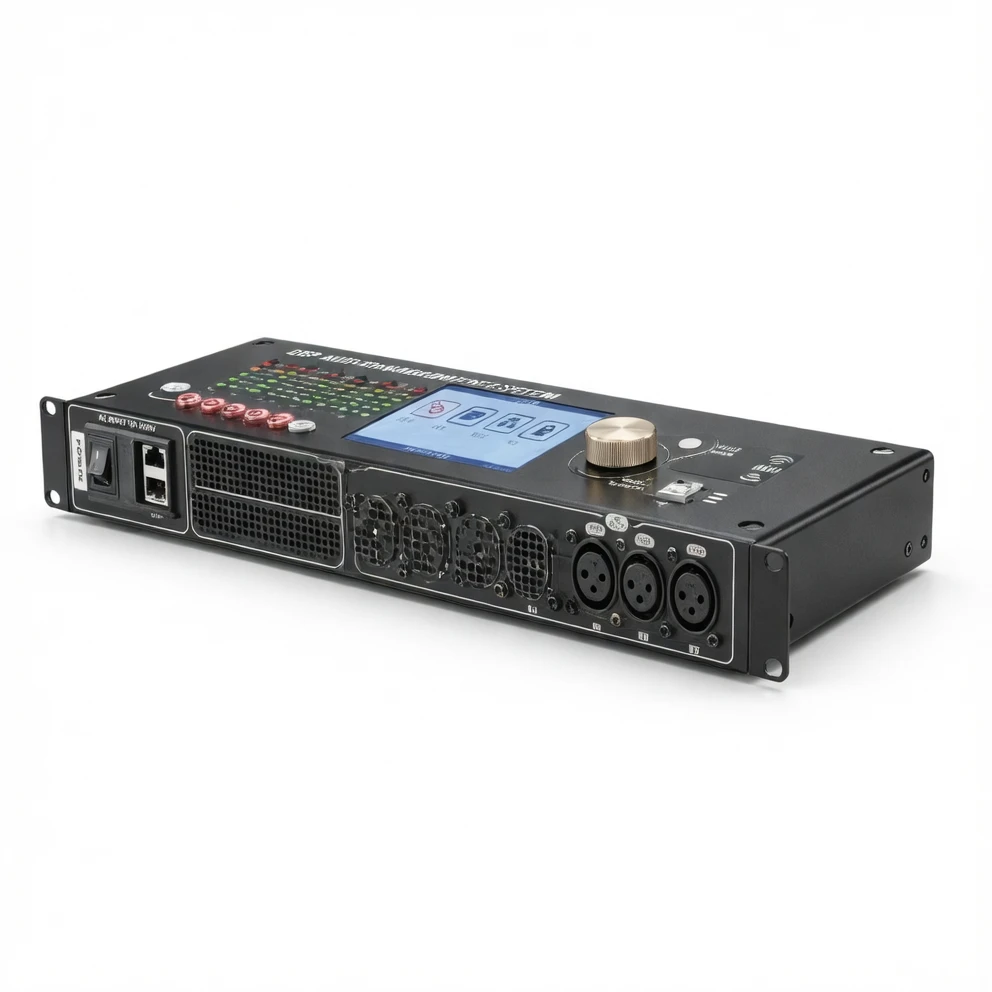

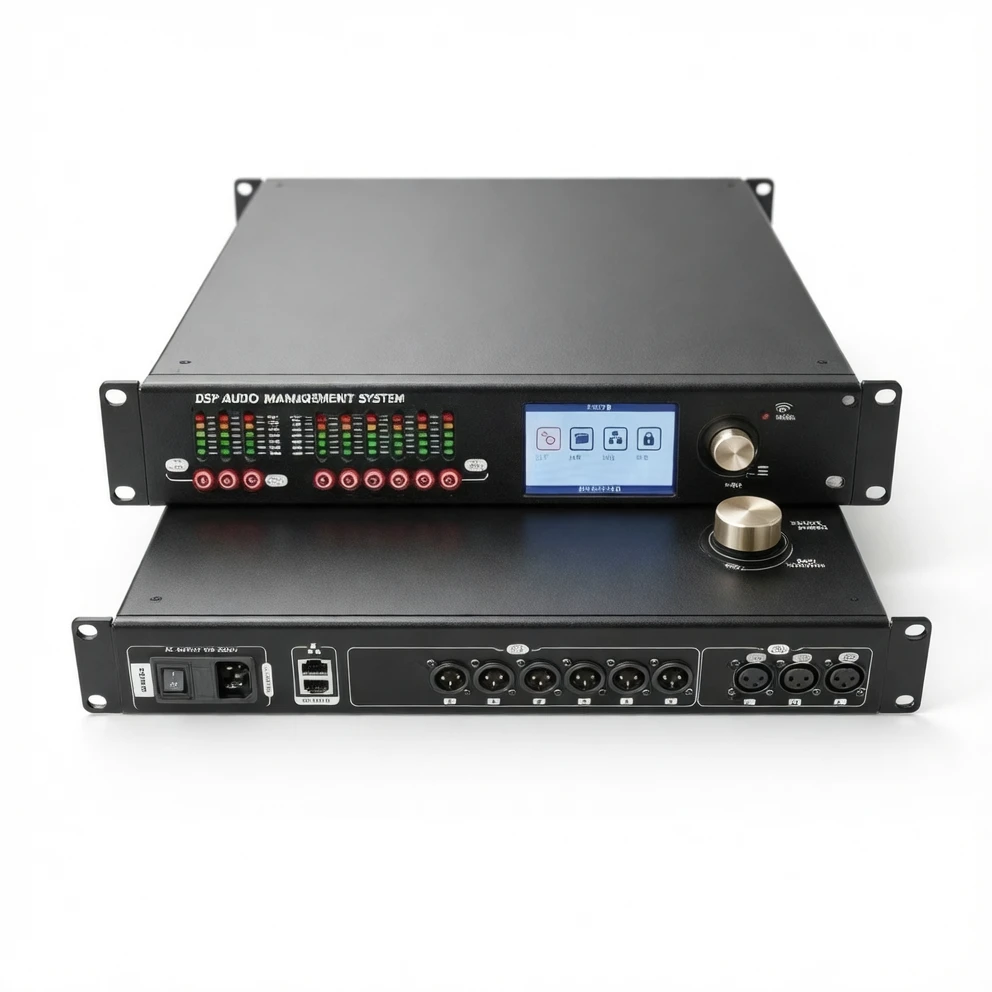

Harmonai DAP36 3-in/6-out Digital Audio Processor product image

Product Overview

Harmonai DAP36 is a professional-grade 3-in/6-out digital audio processor, engineered for environments requiring precise audio signal management. Each input channel features a 31-band graphic equalizer (GEQ) and a 10-band parametric equalizer (PEQ), combined with independent fine-grained delay control (0–1000 ms), enabling seamless adaptation to complex sound reinforcement systems in conference halls, live venues, and multi-purpose spaces. Output channels support flexible routing and crossover management to ensure optimal signal processing for every path.

Input/Output Channels

3 input channels, 6 output channels

Input Equalization

31-band GEQ and 10-band PEQ per input channel

PEQ Parameter Adjustment

Center frequency: 20 Hz–20 kHz (1 Hz step), gain: ±20 dB (0.1 dB step), Q factor: 0.404–28.8

Independent Delay Control

0–1000 ms independent delay per input channel; resolution: 21 μs for delays <10 ms, 1 ms for delays ≥10 ms

Gain Control

−36 dB to +12 dB, adjustable in 0.1 dB steps

Output Routing

Each output channel can be individually assigned to any single input channel or any combination of input channels

Crossover Equalization

10-band equalization per output channel; selectable types: PEQ, low-shelf (LO-shelf), high-shelf (Hi-shelf)

Filter Types

Linkwitz-Riley / Bessel / Butterworth

High-Pass/Low-Pass Filters

HPF/LPF selectable; crossover points: 20 Hz–20 kHz; attenuation slopes: 12/18/24/48 dB/oct

Mute Control

Individual mute control per channel

Typical Applications

The DAP36 is ideal for professional audio environments requiring precise signal processing: conference and lecture halls for multi-zone independent sound field management; live venues and Live Houses for time-aligned multi-speaker array deployment; multi-purpose halls and banquet rooms for zoned sound reinforcement; recording studios and post-production suites for accurate frequency correction; and hotels and shopping malls for optimized background music system performance.

For detailed configuration guidance or technical support for the DAP36 3-in/6-out digital audio processor, contact us today to receive professional audio system design consultation and quotation services.
